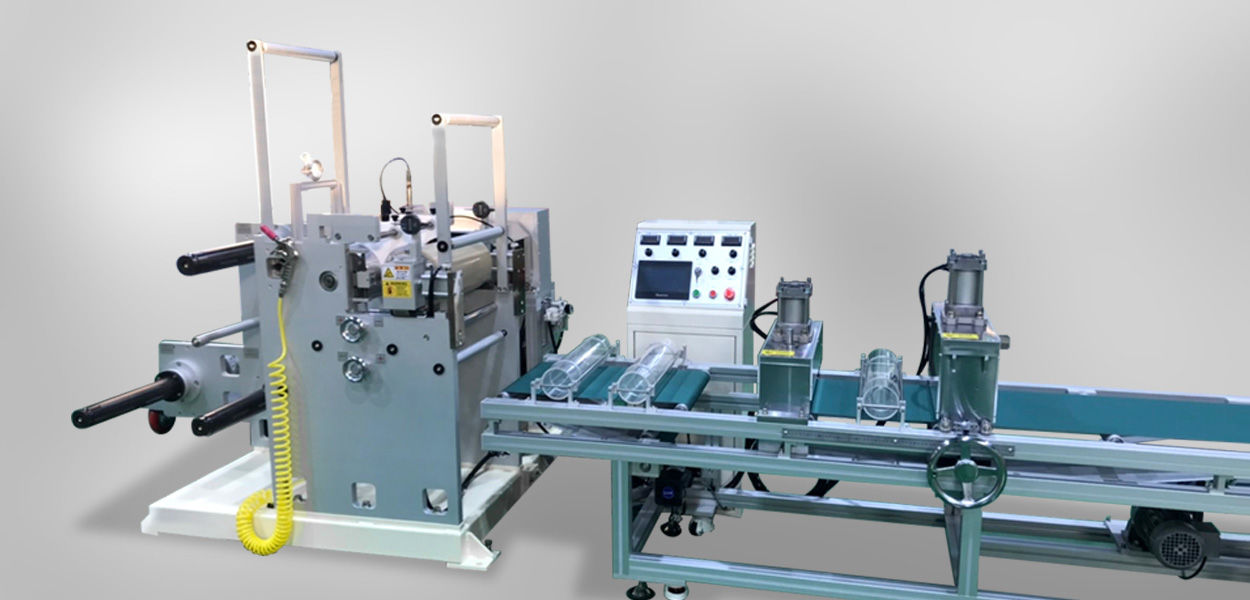

Eye Patch Coating Maching

Eye Oatch
MODEL No : DB-EPCM-400


· An eye patch equipment, which is designed for efficiency requiring less cost and fewer people


CONSTRUCTION


1. UNWINDER No 1

2. UNWINDER No 2

3. UNWINDER No 3

4. LAMINATOR

5. STOPPER & CUTTING UNIT

6. CONVEYOR SYSTEM



OUT OF SCOPE


1. LOQUID SUPPLY SYSTEM
2. UTILITY




GENERAL SPECIFICATION


1. WEB WIDTH : 350mm
2. WEB THICKNESS : 60~300㎛
3. UNWINDER DIA [NO.1]:MAX. Ø350
4. UNWINDER DIA [NO.2,3]:MAX. Ø350
5. MACHINE SPEED : MAX. 10 M /min
6. MACHINE COLOR : RAL 7047(use spec)
7. UTILITY : ELECTRICITY: 380 V x 60 HZ x 3P
(use spec) AIR : 5~6kg/㎠


Eye Patch Coating Maching

MODEL No : DB-EMPC-900
